Power Tap® Demo Kit

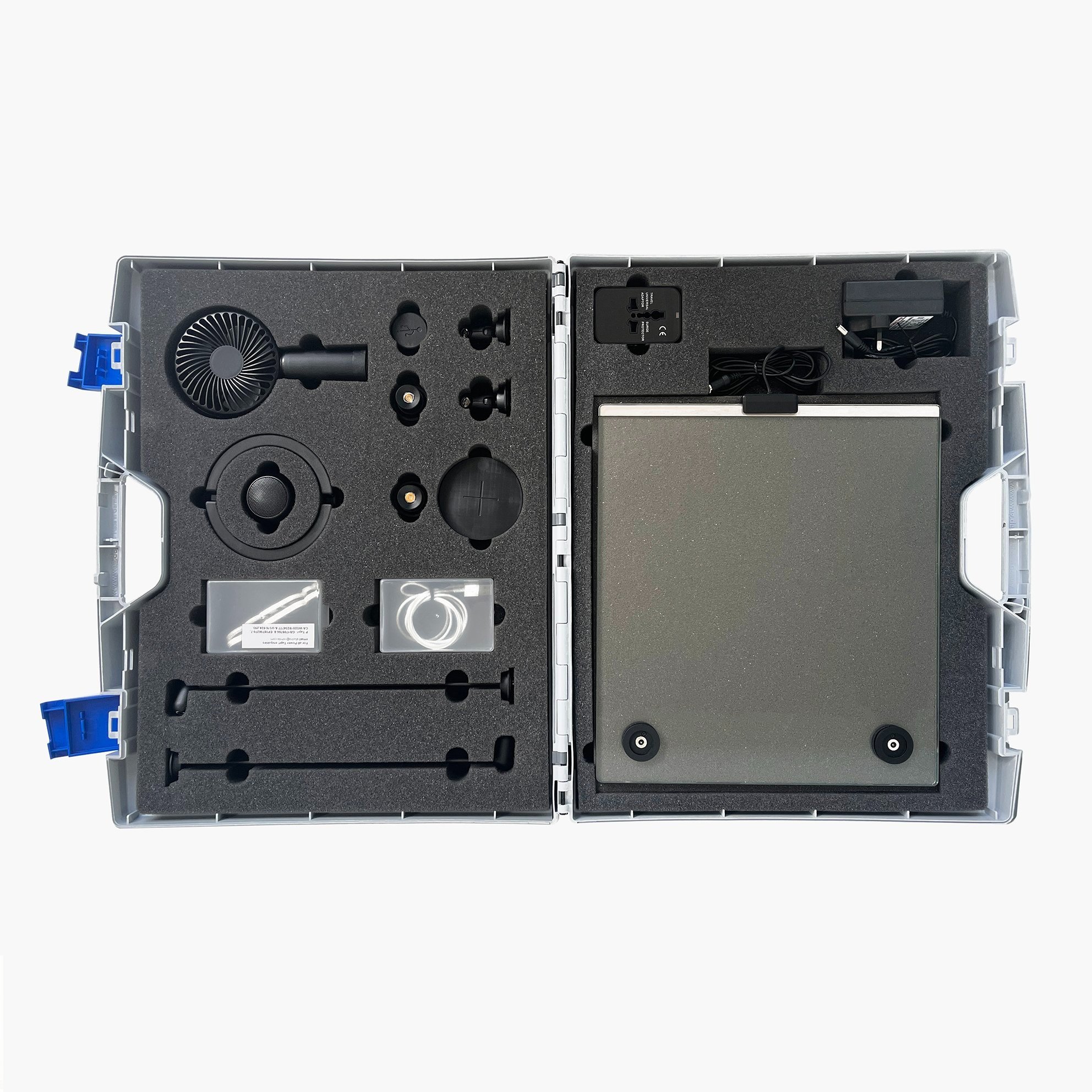

Contents:
1 x Power Tap® glass panel, 300mm x 340mm x 8mm, with power connector plug
1 x Glass panel contains x 2 magnetic sockets accessible both sides
1 x Glass panel stand
1 x Power supply ( 21V 2A )
1 x Worldwide plug adapter
2 x CompassLED directional spotlights
2 x CompassLED tall directional spotlights
2 x CompassLED fixed spotlight
1 x Fan

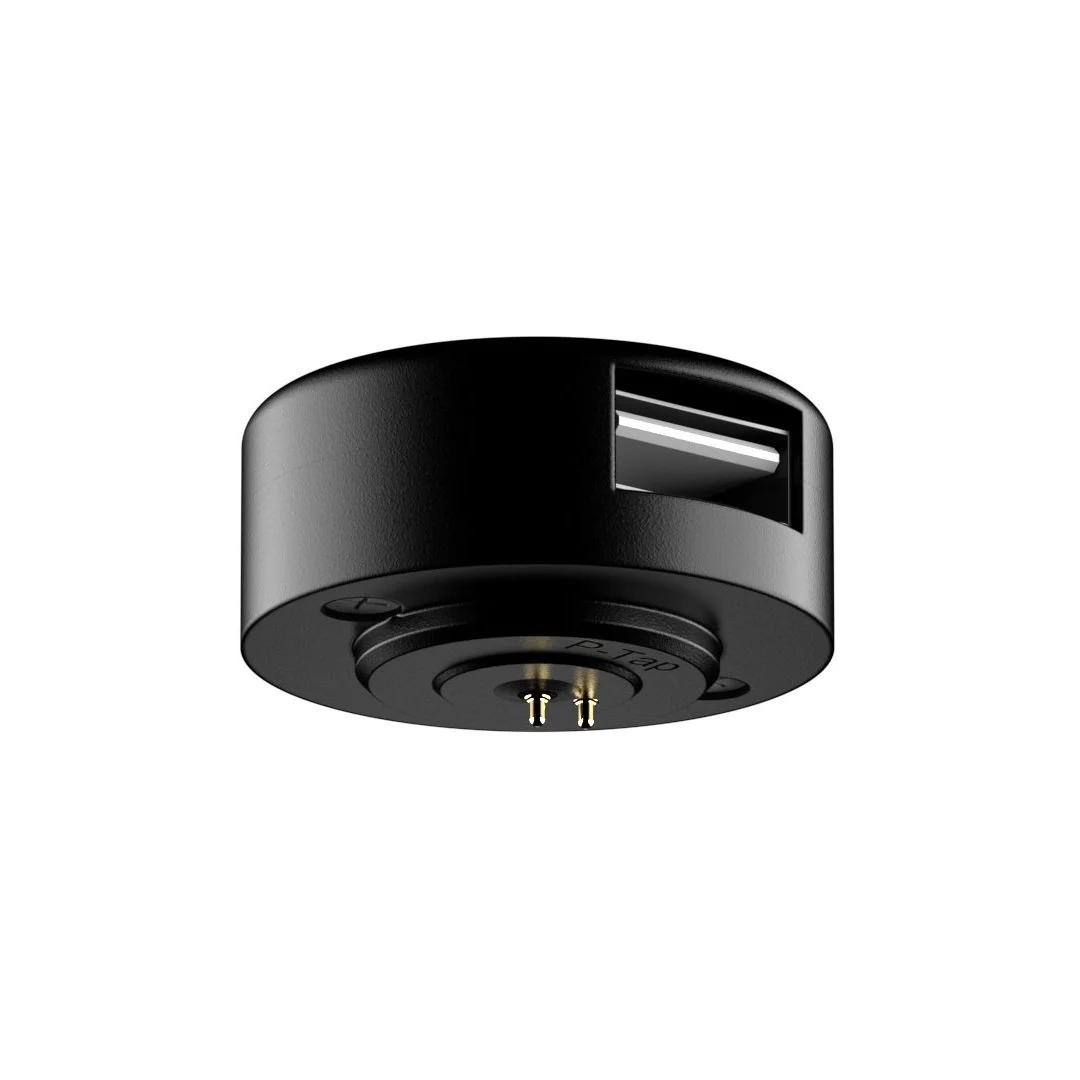

1 x USB socket

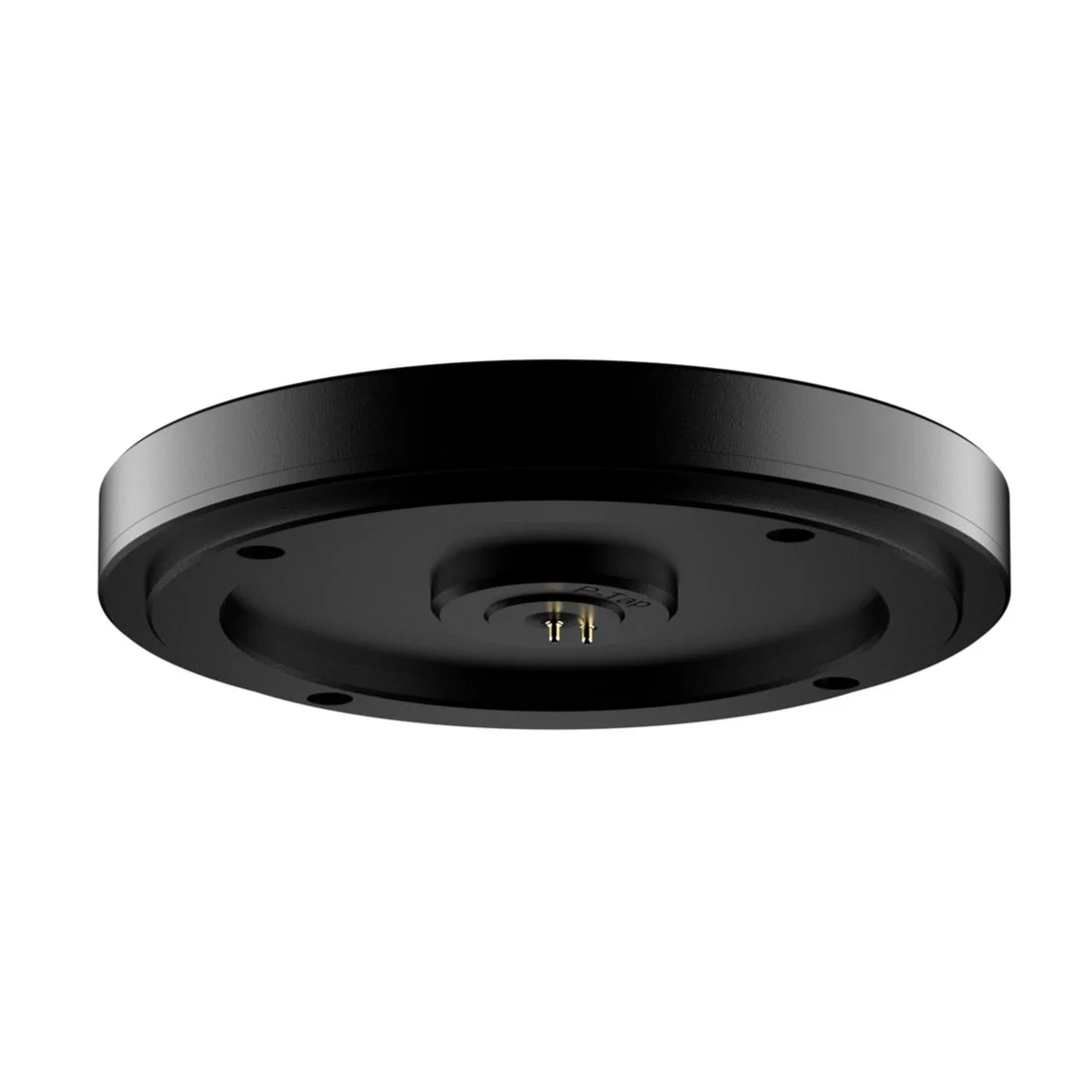

1 x Induction charge pad

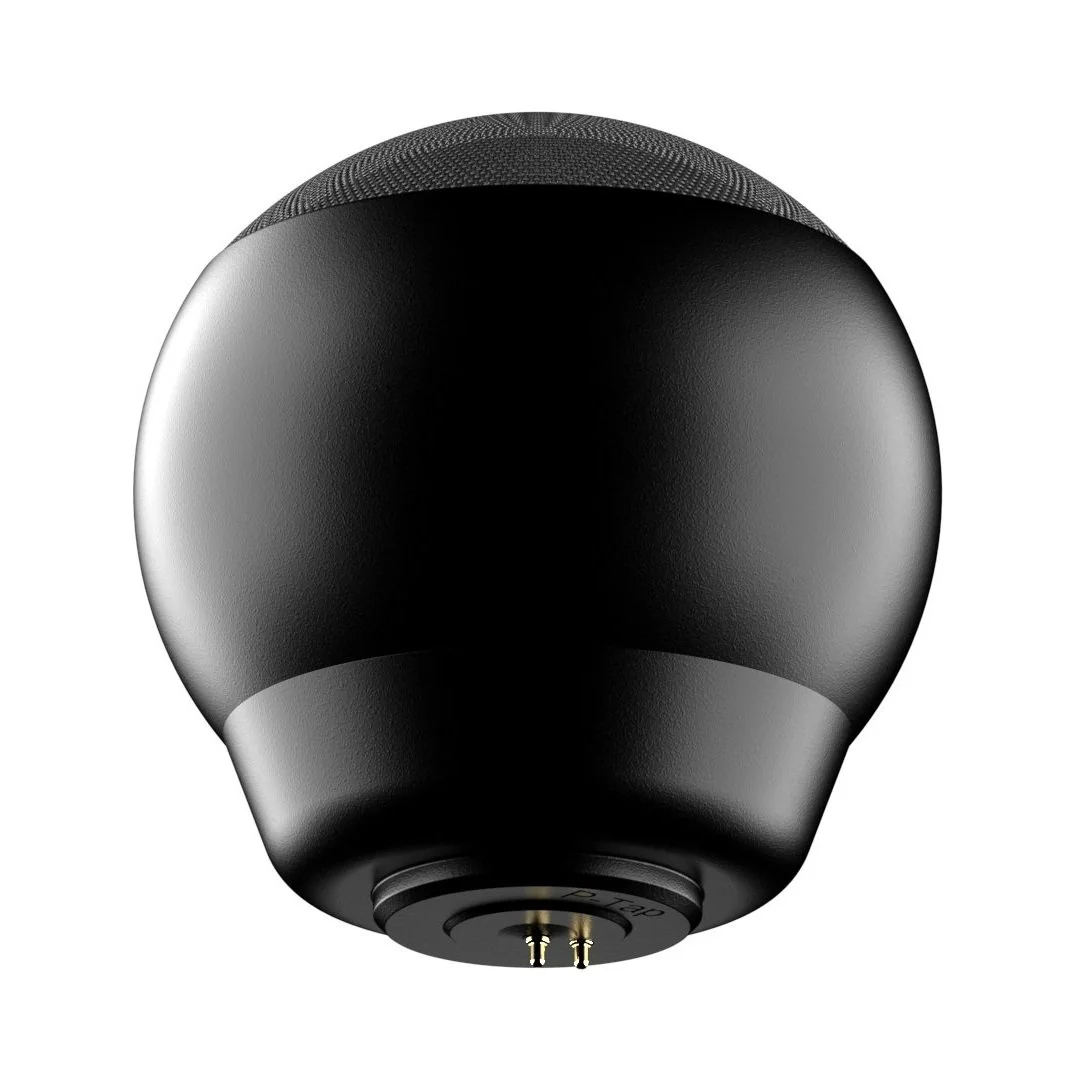

1 x Bluetooth speaker
1 x Heavy duty carry case with foam insert
Free Delivery 4-6 weeks
Demo Video
Start your Power Tap® Project
What is Power Tap®?
P Tap® is a transparent lamination of conductive and non-conductive glass. Connected devices appear to be freely floating within an optically clear glass panel with no visible means of power connection.
What can this solve?
Power Tap® removes the needs for wires, rail systems or mountings. On the demo panel, all accessories magnetically connect to the glass providing invisible power. Lights and components can also be specced to be permanently mounted in the glass. Devices such as USB sockets, induction charging pads, motors, cameras, sensors, digital displays and any other electronic device can all be seamlessly integrated.
Where can Power Tap® be used?
Power Tap® offers designers, architects and engineers limitless design opportunities to locate powered devices within transparent structures. Power Tap® has been used for many applications. Including invisible shelving, commercial retail displays, museum showcases and more. See images below for inspiration on your project.
Bespoke Power Tap® designs
If you have a bespoke Power Tap® application, then email us to begin a project here.
CompassLED lighting is also available separately upon request.
Patented Globally Technology

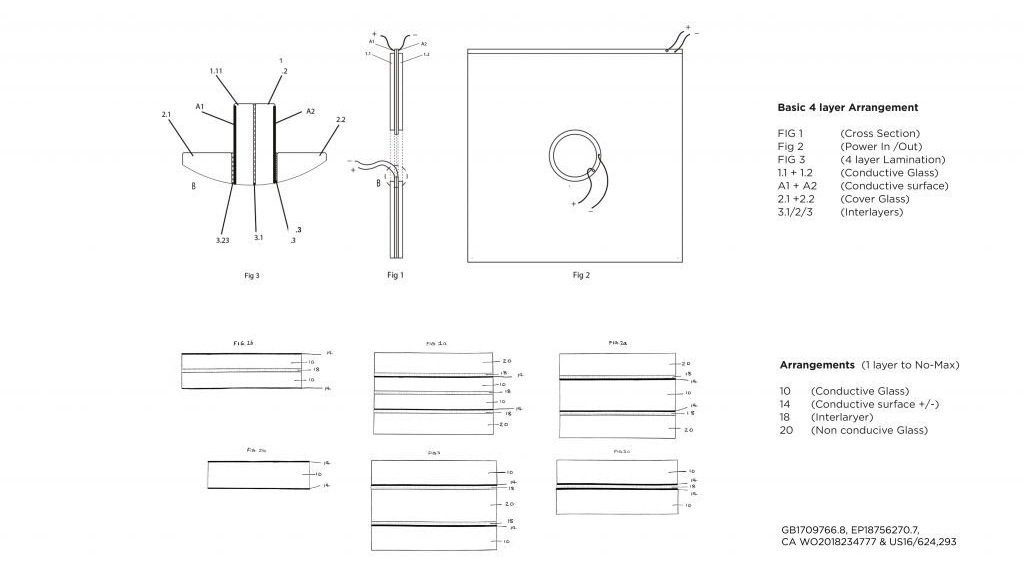

P Tap® is a transparent lamination of conductive and non-conductive glass. The layer arrangement allows power or data to be transferred across individual layers within the lamination. Pre-machined apertures create taps to the positive and negative charged inner coatings that supply power delivery to embedded devices. These connected devices appear to be freely floating within an optically clear glass panel with no visible means of power connection.
Power Tap® Intellectual property is protected globally under GB1709766.8, EP18756270.7, CA WO2018234777 & US16/624,293.
Power Tap® and P Tap® are registered trademarks of Cohda Design Ltd.
CompassLED range

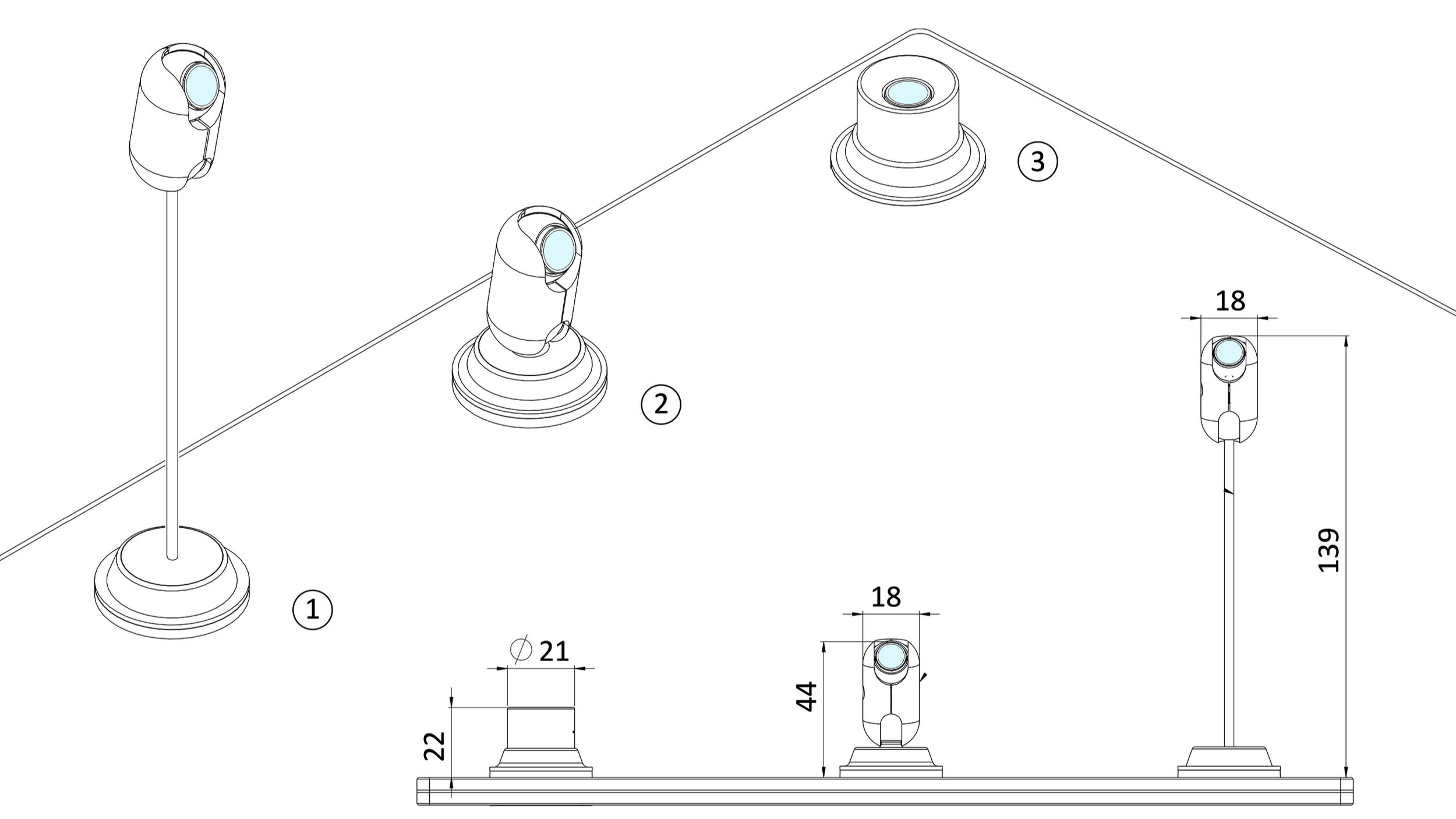

The evolving CompassLED range currently comprises of three products (1) Spotlight (2) High-Spotlight (3) Fixed Spotlight.
The locations of C-LED lights and number of C-LED sockets within a glass panel is fully customisable.
